Sol- Ark Limitless 15K
SA-LIMITLESS-15K

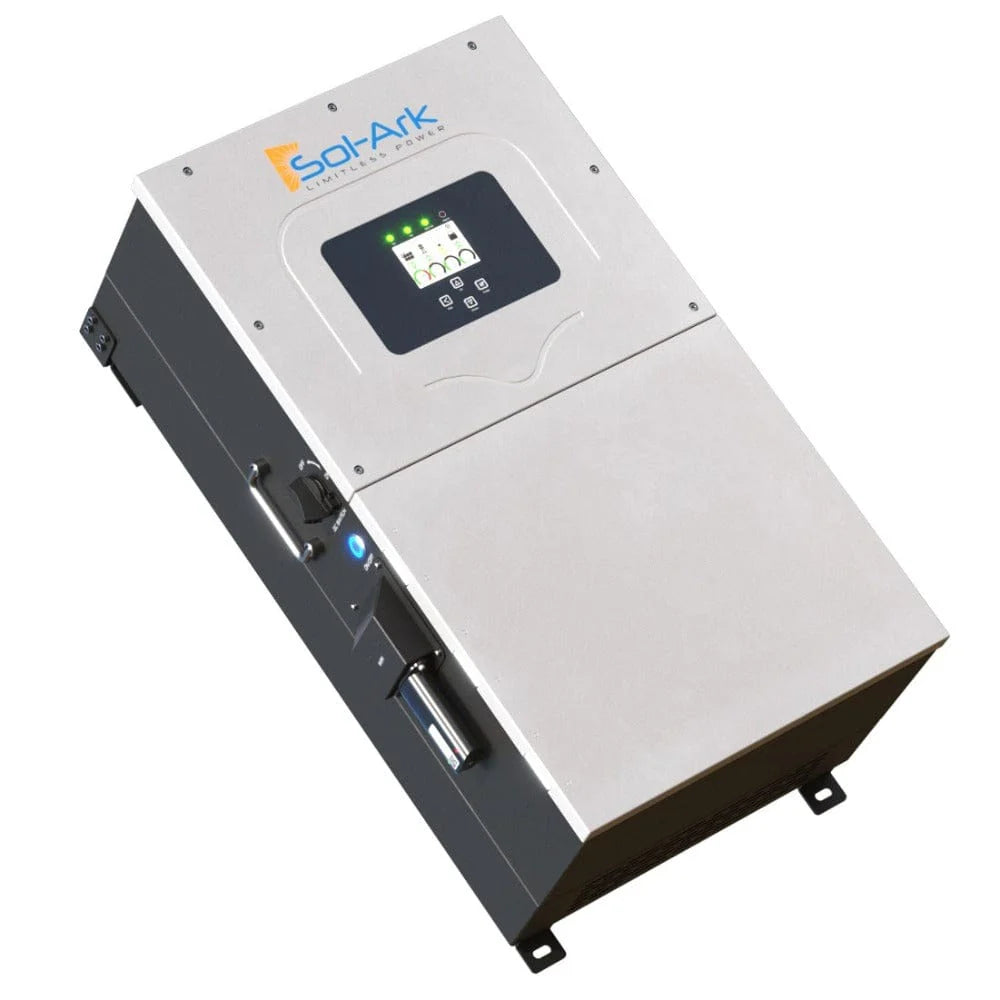

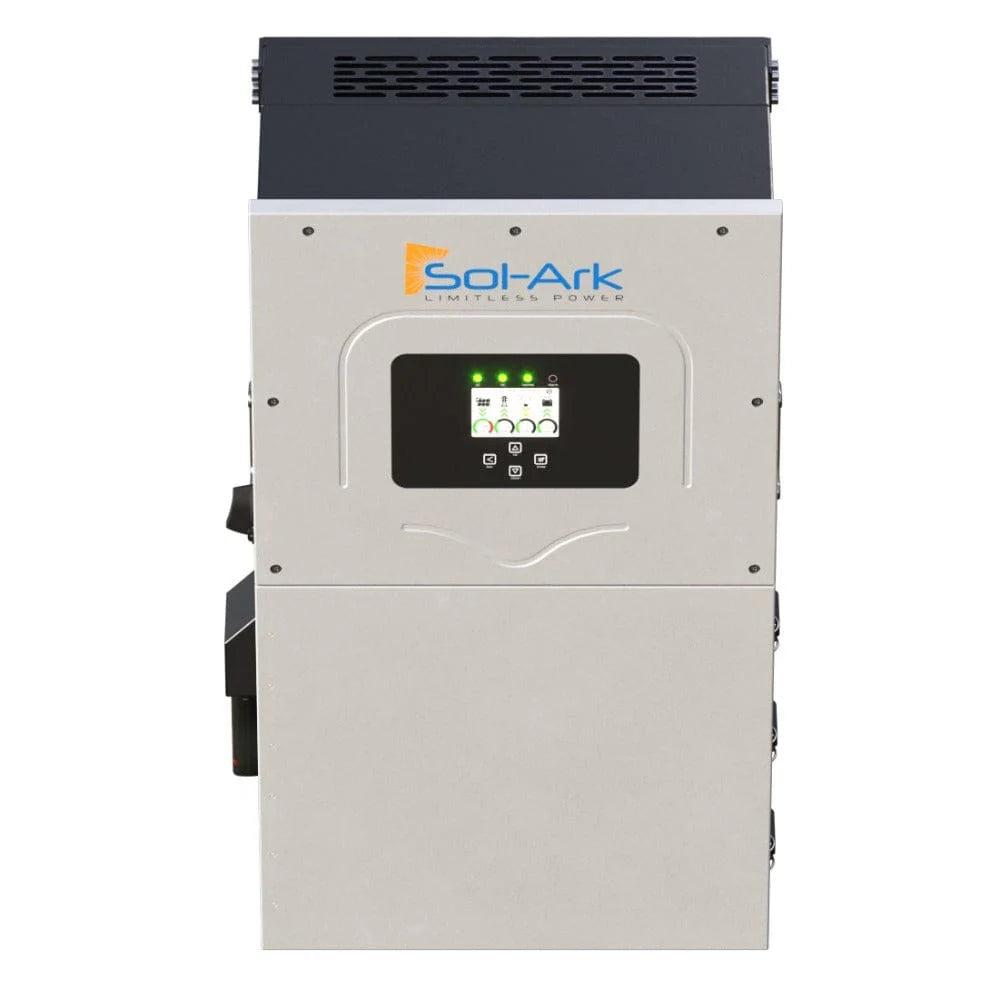

Sol-Ark 15K Hybrid Inverter – 120/240/208V | Whole Home Solar + Battery Backup | NEMA 3R Outdoor Rated
Shop the Sol-Ark 15K Hybrid Inverter, a powerful all-in-one solar energy solution engineered for whole-home solar power, battery backup, and off-grid capability. With support for split-phase and three-phase power (120/240/208V), this USA-engineered inverter is ideal for residential and light commercial solar installations.
All-in-One Hybrid Solar Inverter for Backup, Off-Grid, or Grid-Tied Systems
The Sol-Ark 15K combines an inverter, charge controller, rapid shutdown, battery disconnects, current sensors, and monitoring into one sleek unit. Designed for simplicity and high performance, it supports solar panel arrays, battery storage systems, and generator integration.
Key Features & Benefits
-
15,000W Continuous Power Output – Supports large homes and energy-intensive applications.
-
Grid-Tied, Off-Grid & Hybrid Capabilities – Flexible operation for every energy need.
-
Battery-Agnostic Inverter – Compatible with most 48V lithium-ion and lead-acid batteries.
-
Remote Monitoring – Wi-Fi & LAN access with real-time energy data via mobile app.
-
Easy Installation – Pre-wired system with color touchscreen for faster setup.
-
Weatherproof NEMA 3R Enclosure – Outdoor-ready and built to last.
-
Built-in Smart Load Management – Peak shaving, time-of-use shifting, and backup prioritization.
-
Certified for Safety & Performance – UL 1741, UL1741SB, IEEE 1547, CA Rule 21, HECO Rule 14H
Top Applications
-
Whole-Home Solar Power Systems
-
Battery Backup Systems
-
Off-Grid Cabins or Homesteads
-
Time-of-Use Energy Optimization
-
Retrofits with AC Coupling
-
Critical Load Panel Management
| Specification | Details |
|---|---|
| PV Input Capacity | 19.5 kW |
| AC Output | 15,000W (grid), 12,000W (battery only) |
| Battery Compatibility | 48V Lead-Acid, LiFePO4, Lithium Ion |
| Max Battery Charge/Discharge | 275A |
| Surge Power | 24,000VA (10 sec), 30,000VA (100 ms) |
| MPPT Channels / Strings | 3 MPPTs / 6 strings total |
| Communication | Wi-Fi, LAN, App-based monitoring |
| Enclosure | NEMA 3R – Outdoor Rated |
| Dimensions | 31.8" x 19.4" x 12" |
| Weight | 135 lbs |
| Warranty | 10 Years (extendable) |
What's Included
-
Sol-Ark 15K Hybrid Inverter (Pre-wired)
-
PV/Battery Disconnects
-
Current Sensors
-
Integrated Rapid Shutdown Transmitter
-
Battery Temperature Sensor
-
Color Touchscreen Display
-
Wi-Fi / LAN Connectivity
Why Choose Sol-Ark?
Sol-Ark is a leading U.S.-based solar inverter brand trusted by installers, homeowners, and solar professionals. Their HALT-tested, military-grade engineering delivers unmatched efficiency, reliability, and service support. Plus, Sol-Ark’s hybrid inverters allow for future system expansion with easy parallel stacking (up to 12 units).
Please note this item only ships via Freight. Please contact Sales@Vortexsolarsupply.com for assistance.
