ENPHASE SERIES 6 COMBINER WITH GATEWAY & CELL MODEM

    X-IQ-AM1-240-6C

    $1,799.99

    ENPHASE SERIES 6 COMBINER WITH GATEWAY & CELL MODEM

    Enphase IQ Combiner 6C

    All-in-One Enclosure for Advanced Solar, Battery, and EV Integration

    The IQ Combiner 6C brings together all essential interconnection equipment into a single, streamlined enclosure, dramatically simplifying the installation of IQ Series Microinverters, IQ Batteries, and EV chargers. Designed for flexibility and scalability, it includes integrated metering, load control, and networking in a compact, pre-wired, and field-serviceable unit—making it the cornerstone of any Enphase Energy System.

    Compatible with the IQ Battery 10C and IQ Meter Collar, the IQ Combiner 6C supports full-system backup capabilities, production and consumption monitoring, and smart load management—all in one NEMA 3R enclosure built for residential applications.

    Key Features

    Smart and Connected

    • Built-in IQ Gateway and Load Controller
      Provides centralized control and real-time monitoring for the entire system.

    • Integrated Enphase Mobile Connect (CELLMODEM-07-NA)
      Supports Wi-Fi, Ethernet, and Cellular connectivity options for reliable communication.

    • Revenue-Grade Metering
      Pre-wired CTs deliver precise production, storage, consumption, and EV charging data.

    • Supports Bluetooth Wi-Fi Provisioning
      For a fast and easy wireless setup process.

    Easy and Versatile Installation

    • Supports Up to 8 Breakers
      Accommodates:

      • 5 × PV branch circuits

      • 2 × Battery circuits

      • 1 × EV Charger circuit

    • Built-In Load Controller
      Allows connection of controlled loads up to 80A, helping to optimize energy use during peak periods or outages.

    • Multiple Conduit Entry Options
      Flexibility with top, bottom, and side conduit entries for easier field wiring.

    • Pre-installed Rapid Shutdown Equipment
      UL 489 certified—fully compliant with NEC safety standards.

    Electrical Ratings

    • System Voltage: 120/240 VAC, 60 Hz

    • Internal DER Busbar: 200 A

    • Internal PV Busbar: 100 A

    • Max Continuous DER Current: 160 A

    • Max Continuous PV Current: 80 A*

    • Max Load Control OCPD: 80 A*

    • Short-Circuit Current Rating: 10 kA

    • Max Grid Connection OCPD: 125 A

    • PV Aggregation OCPD: Up to 100 A*

    *Refer to the datasheet for application-specific restrictions.

    Breaker Space Configuration

    • 4 × 20 A or 3 × 20 A + 1 × 20-20 A (Microinverter Breakers)

    • 2 × 80 A (Battery Breakers)

    • 1 × 60 A (EV Charger Breaker)

    • 1 × 80 A (Controlled Loads Breaker)

    Feature Value
    Dimensions (H × W × D) 26.77 × 18.11 × 8.66 in
    Weight 18 kg (39.68 lbs)
    Enclosure Rating NEMA 3R – Outdoor Rated
    Certifications UL Listed, NRTL Certified



    Ideal For

    • Whole-home and partial-home backup systems

    • PV + Battery + EV Charger installations

    • Smart energy management and load prioritization

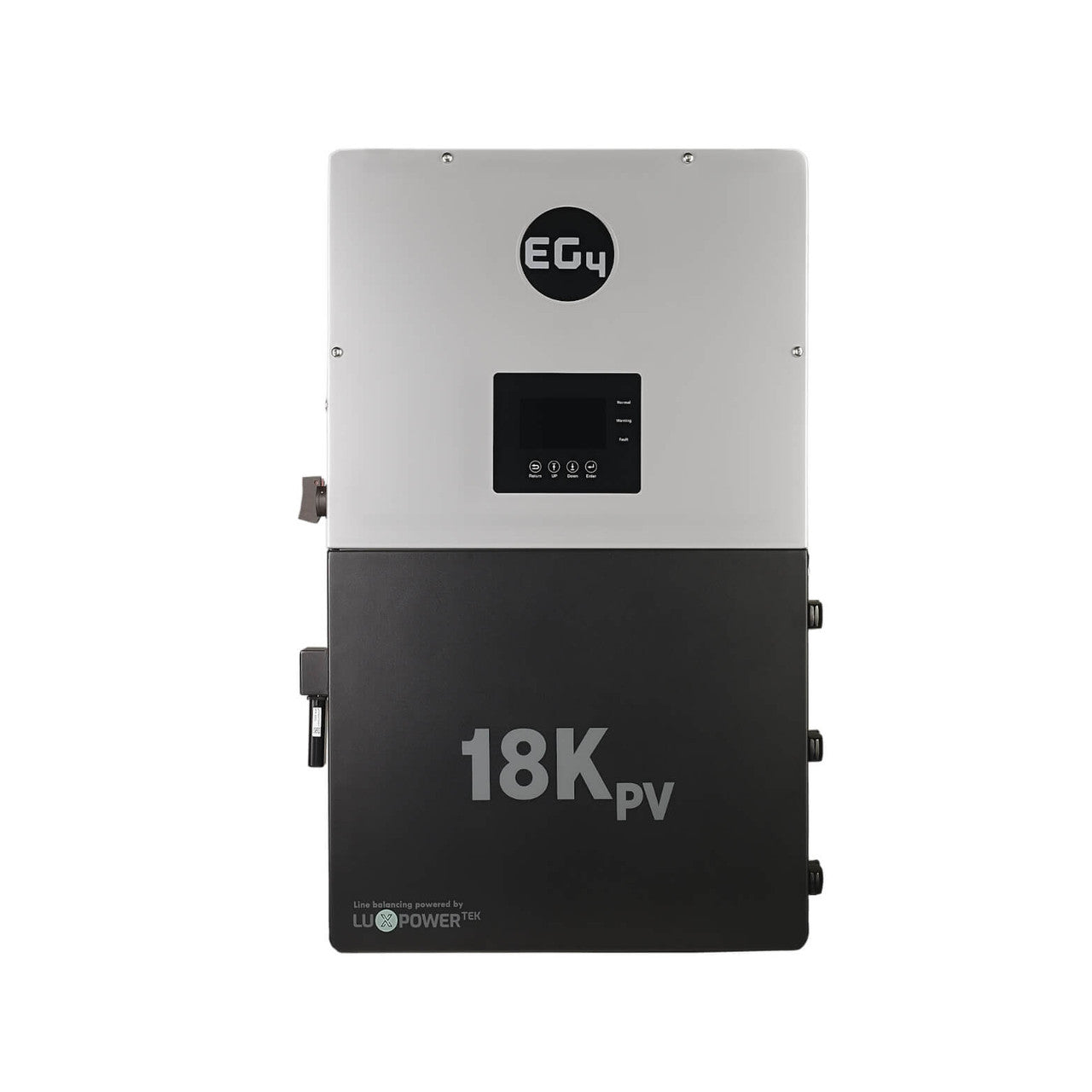

    Key Features

    • No external charge controllers or transformers needed
    • Supports up to 18kW of solar panels
    • Compatible with standard North American home electrical systems
    • Closed-loop communication with EG4 Lithium batteries
    • NEMA 4X / IP65 rated for indoor & outdoor installations
    • Stackable for system expansion
    • Built-in Wi-Fi for mobile & web-based system monitoring
