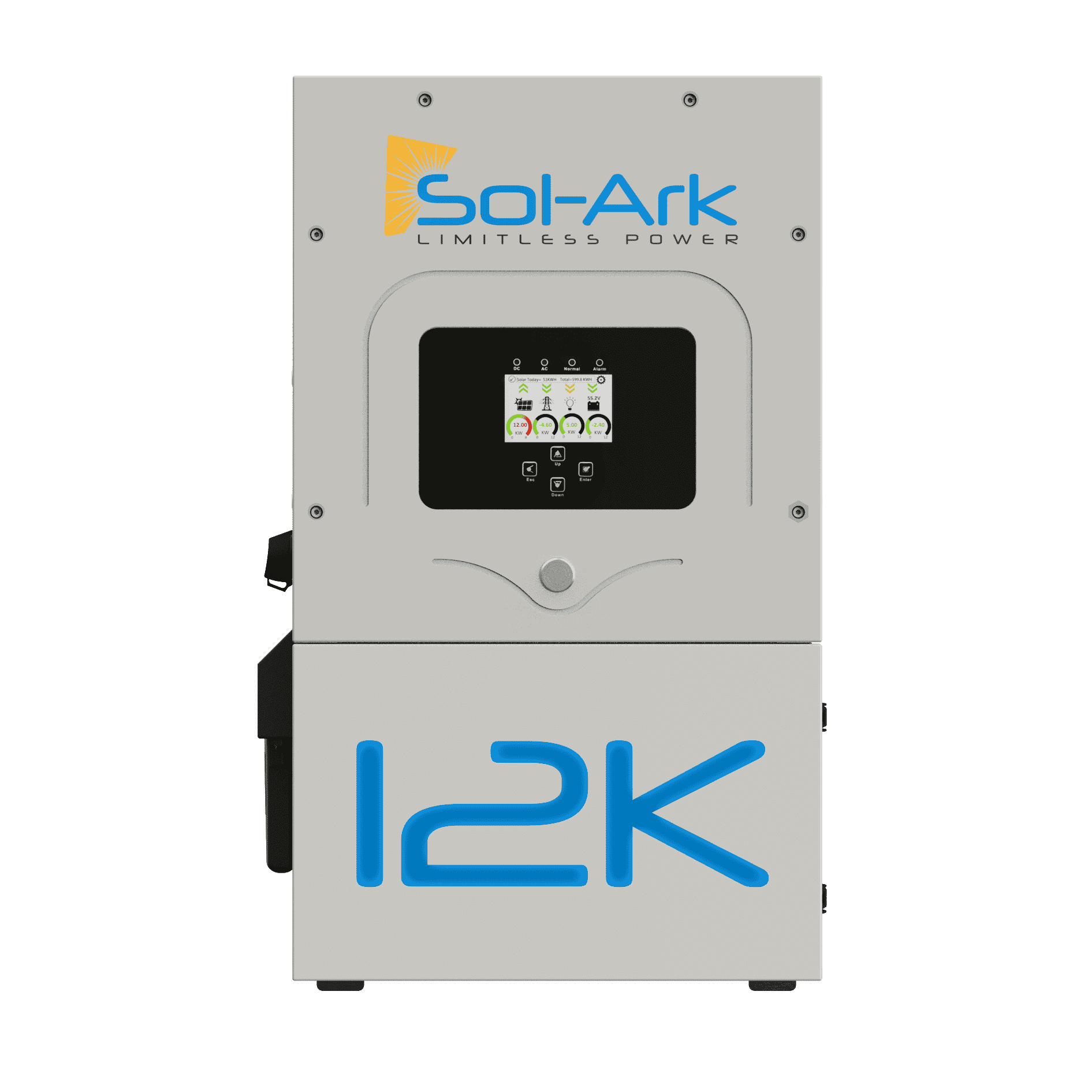

Sol-Ark 12K Hybrid All-In-One Inverter (120/240/208V | 48V)
The Ultimate Solar + Battery Solution for On-Grid or Off-Grid Power

The Sol-Ark 12K is one of the most advanced and reliable hybrid inverters on the market—engineered for both grid-tied and off-grid solar applications. With built-in charge controllers, battery management, and intelligent energy routing, this all-in-one system delivers seamless integration, high efficiency, and unmatched flexibility.

Whether you're looking to lower your utility bill, achieve energy independence, or ensure backup power during outages, the Sol-Ark 12K is the solution trusted by homeowners, installers, and solar professionals across the U.S.

All-in-One Performance

• Pre-Wired & Ready to Install – Everything comes in one box to simplify installation and lower costs.

• Powerful Output – Delivers 12,000W of continuous power (120V/240V/208V split-phase).

• Parallel Stackable – Expandable system supports up to 9 inverters for 108kW of output.

Smart, Flexible Energy Management

• Hybrid System – Manage and combine power from solar, batteries, grid, and generators simultaneously.

• Battery Agnostic – Compatible with 48V lithium, AGM, or flooded lead-acid batteries.

• Use With or Without Batteries – Ideal for both full battery backup systems or solar-only grid-tied setups.

Advanced Features

• Dual 500V MPPT Charge Controllers (6 PV strings)

• Built-in Rapid Shutdown, Arc Fault, and Ground Fault Protection

• Auto Generator Start Support

• Built-in Monitoring with Wi-Fi

• 50A AC Breakers for Load, Grid, and Generator

• Peak Power: 20kW (500ms), 14kW (10 min)

Applications

• Grid-Tied Mode – Sell power back to the grid.

• Time-of-Use Optimization – Use battery power when utility rates are highest.

• Meter Zero Mode – Offset your entire energy bill without a smart meter.

• Smart Load Control – Optimize when high-load devices operate.

• Off-Grid & Backup – Reliable backup power or full off-grid operation.

• AC Coupling – Retrofit existing solar systems for battery backup.

Technical Specifications

• Model: Sol-Ark 12K

• Voltage: 48V battery input

• AC Output: 120V/240V/208V

• Rated Power: 12,000W continuous | 20,000W surge

• Solar Input: 13kW max (2x MPPT)

• Efficiency: 96.5% CEC | 98% max

• Weight: 74 lbs

• Warranty: 10 years (U.S. support)

Why Choose the Sol-Ark 12K?

• Industry-leading performance at an affordable price

• UL-certified for safety and compliance

• Backed by a 10-year warranty and U.S.-based support

• Simple setup with intuitive color touchscreen controls

• Works with top battery brands like HomeGrid, Fortress Power, EG4, and more

Power your home efficiently, stay prepared for outages, and take control of your energy future with the Sol-Ark 12K Hybrid Inverter.
