BAT-10K1PS0B-02
Note: This battery ships via freight truck only. For shipping inquiries, please email sales@vortexsolarsupply.com
Smart. Efficient. Reliable.

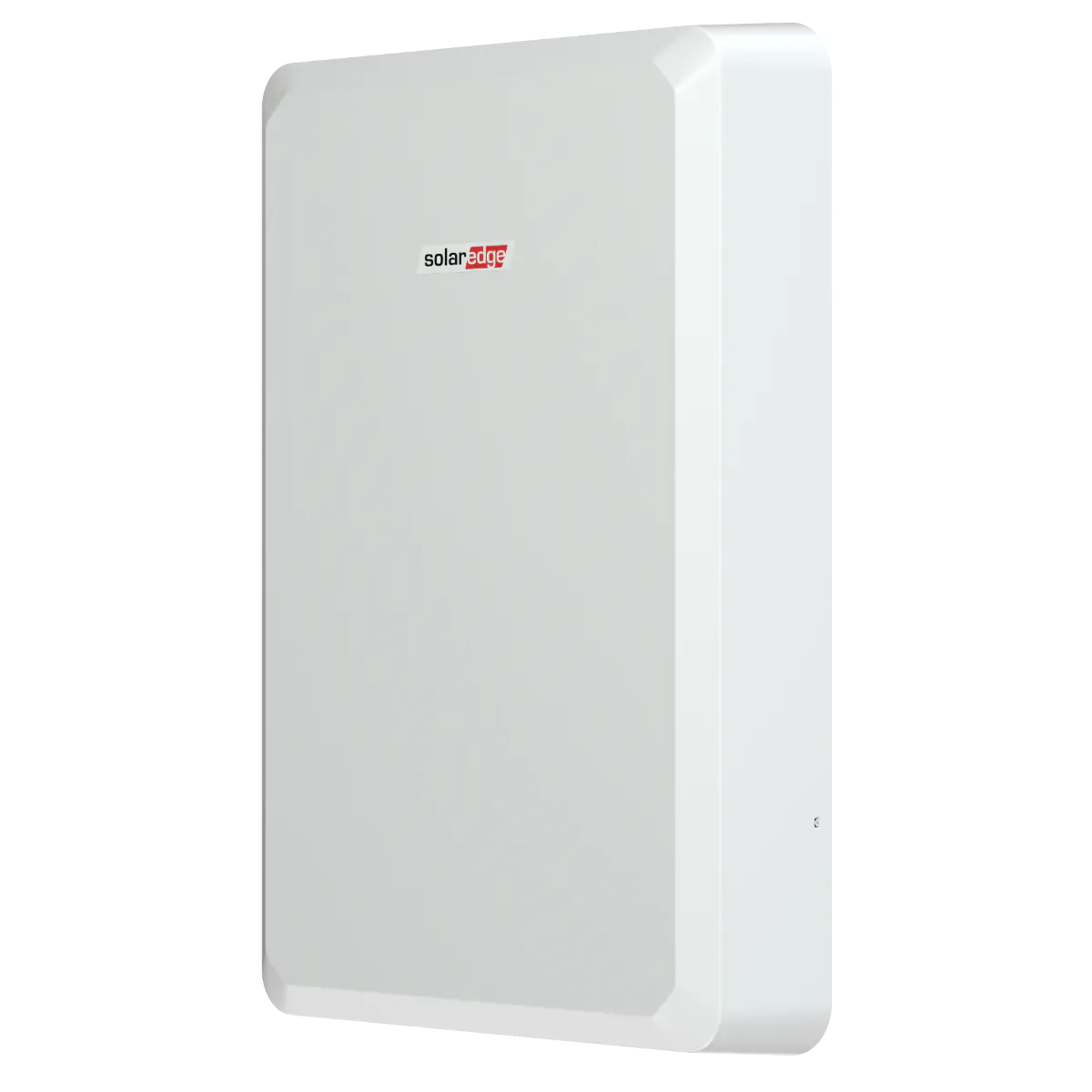

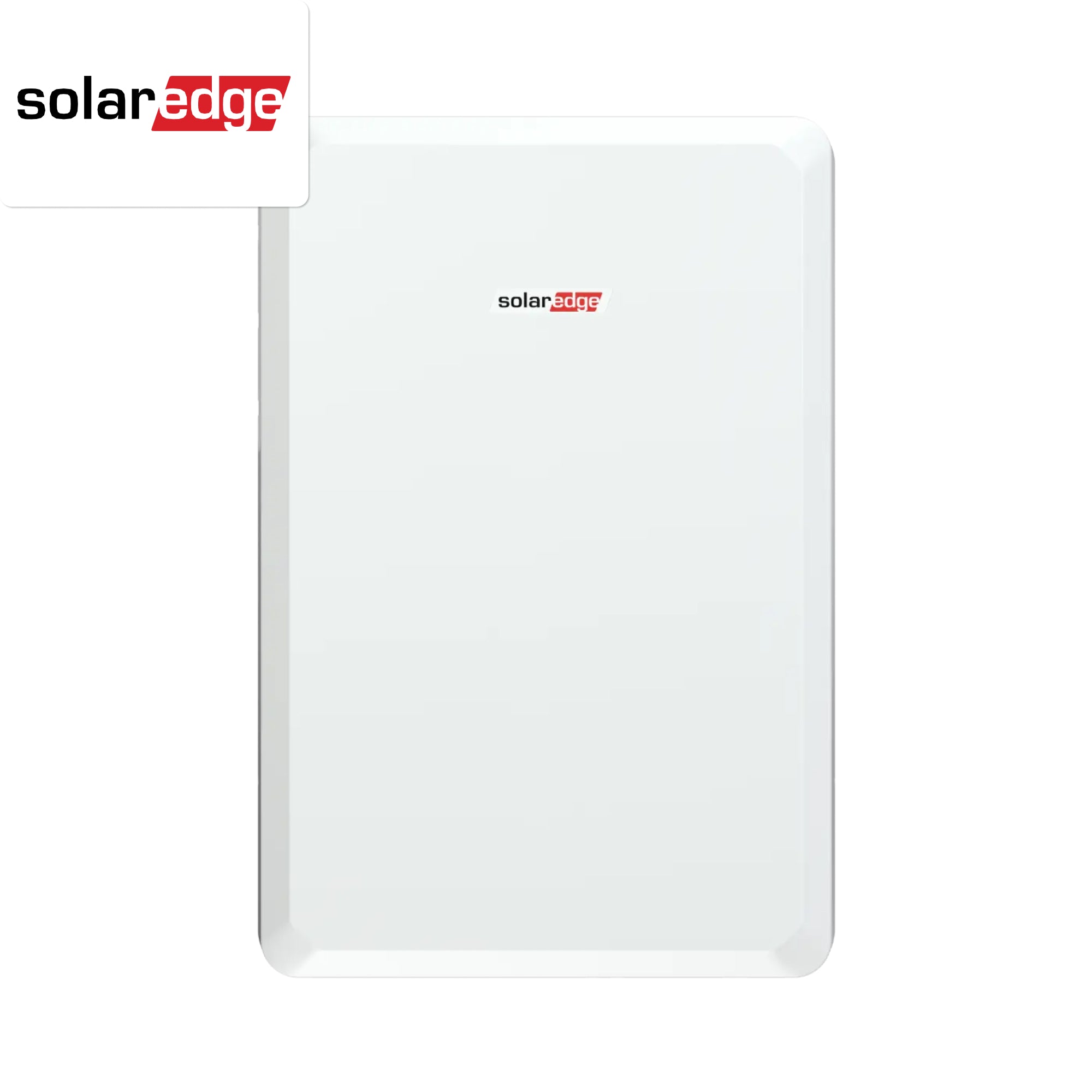

The SolarEdge BAT-10K1PS0B-02 Energy Bank is a high-performance 10kWh home battery built to power the next generation of smart homes. Designed specifically to integrate with SolarEdge Home Hub Inverters, it delivers unmatched system efficiency, seamless control, and dependable backup power when you need it most.
Whether you're maximizing solar self-consumption, preparing for outages, or integrating EV charging, this DC-coupled battery is the cornerstone of a smarter energy future.
DC-Coupled for Maximum Efficiency
Store and use more solar energy thanks to DC coupling, reducing conversion losses and boosting overall system output.
Optimized for SolarEdge Ecosystem
Fully compatible with the SolarEdge Home Network, offering unified management via a single smart app.
Safe by Design
Includes advanced safety features like Rapid Shutdown and SafeDC™ for enhanced peace of mind.
Flexible & Easy Installation
Plug-and-play setup with automatic configuration via SetApp. Supports both wall and floor mounting, indoors or outdoors.
Smart Backup & Energy Management
Ideal for solar storage, backup power, and load shifting—helping lower energy bills and increase independence from the grid.
Seamless Communication:
Wireless + RS485 interfaces for smooth connectivity with your inverter and home energy system.
Quiet Operation:
Operates at less than 25 dBA using natural convection cooling—no fans, no noise.
| Feature | Value |
|---|---|
| Model | BAT-10K1PS0B-02 |
| Usable Energy | 9700 Wh (100% depth of discharge) |
| Continuous Output Power | 5000 W |
| Peak Output (10 sec) | 7500 W |
| Efficiency (Roundtrip) | >94.5% |
| Mounting Options | Floor or Wall Mount |
| Battery Certifications | UL1973, UL9540, UL9540A, UN38.3 |
| Cell Certification | UL1642 |
| Protection Rating | IP55 / NEMA 3R (indoor/outdoor) |
| Operating Temp Range | -10°C to 50°C / 14°F to 122°F |
| Communication | Wireless, RS485 |
| Noise Level | <25 dBA |
| Altitude Rating | Up to 2000 m (6562 ft) |
| Warranty | 10 Years |
| Inverter Compatibility |
Supports up to 3 batteries/inverter |
Whole-home or essential load backup
Increasing solar self-consumption
EV charger integration
Reducing grid reliance and utility costs
Power your home smarter—with the SolarEdge Energy Bank 10kWh.
Seamless, efficient, and built for the future of energy.
